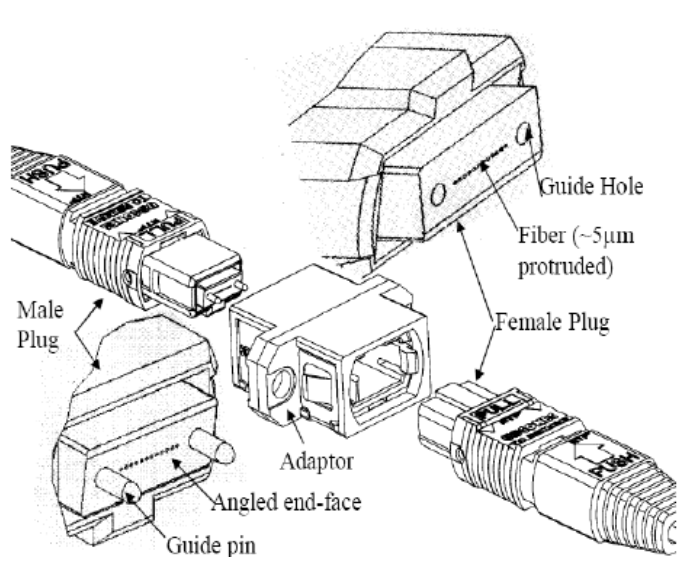

The alignment mechanism of the MPO connector is achieved through its unique design and construction. Specifically, the MPO connector employs a precision ferrule design with guiding holes on its end face that align precisely with guiding pins (PIN pins) for accurate connection. This design ensures the precise positioning of optical fibers within the connector, enabling stable transmission of optical signals.Www.adsscable.cn

During the connector mating process, a spring mounted at the tail of the ferrule provides a thrust force, locking the ferrule securely with the adapter. This not only ensures the stability of the connector but also further improves the alignment accuracy between optical fibers.

Www.adsscable.cn

In addition, the MPO connector body features a side key with either a concave or convex shape, serving to restrict the relative position of the connector heads, such as P1, P2, etc. This design helps ensure the correct positioning of the connector during mating, preventing fiber misalignment due to improper positioning.

Moreover, some advanced MPO connectors are equipped with adjustable guide keys. These guide keys can be fine-tuned according to actual needs to further improve alignment accuracy. This design provides the MPO connector with greater flexibility and adaptability during mating.

Overall, the alignment mechanism of the MPO connector is achieved through its precision ferrule design, spring thrust, key positioning, and adjustable guide keys. These design features ensure precise alignment of optical fibers within the connector, guaranteeing stable and efficient transmission of optical signals.
